4.5 mm, rosca corta  |  4,5 mm de rosca completa
Córtex tornillo canulado de 4.5 mm Ø rosca corta

  • La fijación de fracturas con fragmentos medianos, por ejemplo:
  • fracturas del maléolo
  • Las fracturas de pilón tibial
  • Las fracturas del calcáneo y el astrágalo
  • fractura de meseta tibial
  • Carpo y tarso artrodesis
  • Broca: 3.2mm
  • Broca para un deslizamiento del agujero: 4.5mm
Cortex Cannulated Screw Ø 4.5mm Short Thread
Amplía
Tamaño
en mm 		Acero inoxidable Titanio
Estándar Autoperforantes Estándar Autoperforantes
20 117.120 117.320 Ti-117.120 Ti-117.320
22 117.122 117.322 Ti-117.122 Ti-117.322
24 117.124 117.324 Ti-117.124 Ti-117.324
26 117.126 117.326 Ti-117.126 Ti-117.326
28 117.128 117.328 Ti-117.128 Ti-117.328
30 117.130 117.330 Ti-117.130 Ti-117.330
32 117.132 117.332 Ti-117.132 Ti-117.332
34 117.134 117.334 Ti-117.134 Ti-117.334
36 117.136 117.336 Ti-117.136 Ti-117.336
38 117.138 117.338 Ti-117.138 Ti-117.338
40 117.140 117.340 Ti-117.140 Ti-117.340
42 117.142 117.342 Ti-117.142 Ti-117.342
44 117.144 117.344 Ti-117.144 Ti-117.344
46 117.146 117.346 Ti-117.146 Ti-117.346
48 117.148 117.348 Ti-117.148 Ti-117.348
50 117.150 117.350 Ti-117.150 Ti-117.350
52 117.152 117.352 Ti-117.152 Ti-117.352
54 117.154 117.354 Ti-117.154 Ti-117.352
56 117.156 117.356 Ti-117.156 Ti-117.356
58 117.158 117.358 Ti-117.158 Ti-117.358
60 117.160 117.360 Ti-117.160 Ti-117.360
62 117.162 117.362 Ti-117.162 Ti-117.362
64 117.164 117.364 Ti-117.164 Ti-117.364
66 117.166 117.366 Ti-117.166 Ti-117.366
68 117.168 117.368 Ti-117.168 Ti-117.368
70 117.170 117.370 Ti-117.170 Ti-117.370
72 117.172 117.372 Ti-117.172 Ti-117.372
74 117.174 117.374 Ti-117.174 Ti-117.374
Parte superior

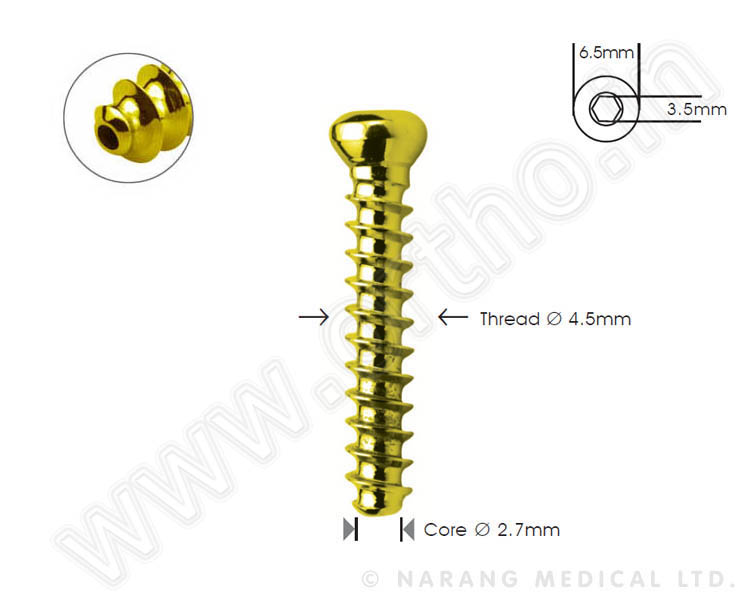

Córtex tornillo canulado de 4,5 mm Ø - rosca completa

  • La fijación de fracturas con fragmentos medianos, por ejemplo:
  • fracturas del maléolo
  • Las fracturas de pilón tibial
  • Las fracturas del calcáneo y el astrágalo
  • fractura de meseta tibial
  • Carpo y tarso artrodesis
  • Broca: 3.2mm
  • Broca para un deslizamiento del agujero: 4.5mm
Cortex Cannulated Screw Ø 4.5mm - Full Thread
Amplía
Tamaño
en mm 		Acero inoxidable Titanio
Estándar Autoperforantes Estándar Autoperforantes
20 117.020 117.220 Ti-117.020 Ti-117.220
22 117.022 117.222 Ti-117.022 Ti-117.222
24 117.024 117.224 Ti-117.024 Ti-117.224
26 117.026 117.226 Ti-117.026 Ti-117.226
28 117.028 117.228 Ti-117.028 Ti-117.228
30 117.030 117.230 Ti-117.030 Ti-117.230
32 117.032 117.232 Ti-117.032 Ti-117.232
34 117.034 117.234 Ti-117.034 Ti-117.234
36 117.036 117.236 Ti-117.036 Ti-117.236
38 117.038 117.238 Ti-117.038 Ti-117.238
40 117.040 117.240 Ti-117.040 Ti-117.240
42 117.042 117.242 Ti-117.042 Ti-117.242
44 117.044 117.244 Ti-117.044 Ti-117.244
46 117.046 117.246 Ti-117.046 Ti-117.246
48 117.048 117.248 Ti-117.048 Ti-117.248
50 117.050 117.250 Ti-117.050 Ti-117.250
52 117.052 117.252 Ti-117.052 Ti-117.252
54 117.054 117.254 Ti-117.054 Ti-117.252
56 117.056 117.256 Ti-117.056 Ti-117.256
58 117.058 117.258 Ti-117.058 Ti-117.258
60 117.060 117.260 Ti-117.060 Ti-117.260
62 117.062 117.262 Ti-117.062 Ti-117.262
64 117.064 117.264 Ti-117.064 Ti-117.264
66 117.066 117.266 Ti-117.066 Ti-117.266
68 117.068 117.268 Ti-117.068 Ti-117.268
70 117.070 117.270 Ti-117.070 Ti-117.270
72 117.072 117.272 Ti-117.072 Ti-117.272
74 117.074 117.274 Ti-117.074 Ti-117.274
Parte superior
